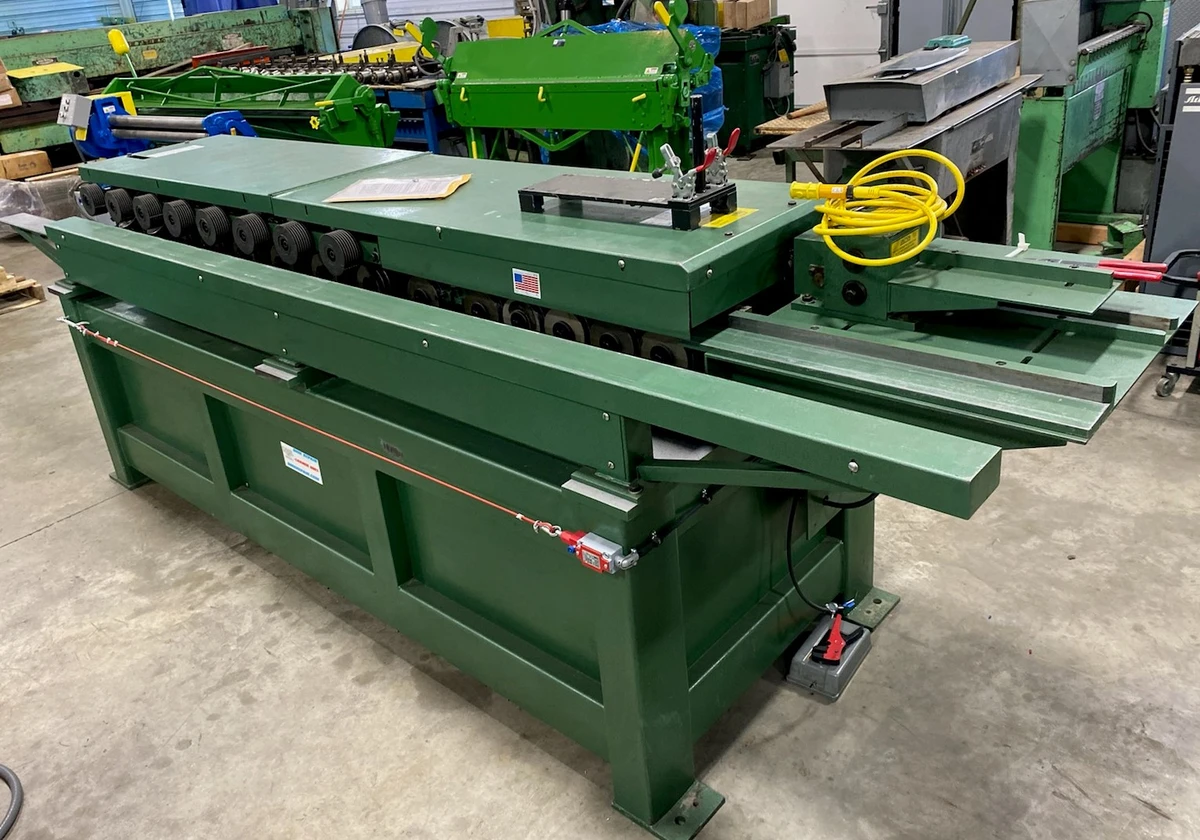

This is a TDF Rollformer is DELIVERED TO YOU at discounted price shown. This rollformer produces either TDC or TDF flanges. Tinknocker TK T-D-P Roll Former. At last, an affordable, full service, high quality transverse duct connector machine!!! HERE’S THE BEEF! This TINKNOCKER 14 station roll former comes standard with TDC or TDF Rolls, Slitter and Clip Rolls outboard. This T-D-P roll former will roll sheet metal into leak proof, sealable TDC or TDF flanges at speeds of up to 50 fpm, automatically! Start saving time and money by forming your own TDC or TDF flanges – with their snap on corners – and eliminate spot welding altogether. Buyer must specify which set of transverse duct connector rolls is wanted on the machine (TDC or TDF). Slitting and Clip Rolls come on all TDP roll formers.
THERE IS NO GREATER VALUE IN A TDC OR TDF ROLL FORMER. Besides your plasma this machine will put more money on the bottom line than any other machine. If you are buying 18,000 linear feet of Ductmate or Ward Flange, STOP! This machine will pay for itself in one (1) year.
We have one in stock.
Specifications:
Weight: 3450 lbs
Dimensions: 38 x 136.75 x 46 in
Capacity: T-D-P 18-24 ga. for T-D-P Uses approx. 1-7/8″ of material on T-D-P 50 feet per minute T-D-P Clip (min. length 20″) 22 ga. 2-1/8″ 2 1/8″
Forming Sections: 14
Shaft Diameter: 1.25″
Passline: 38.625″
Forming Speed: 50fpm
Specifications:
Weight: 3450 lbs
Dimensions: 38 x 136.75 x 46 in
Capacity: T-D-P 18-24 ga. for T-D-P Uses approx. 1-7/8″ of material on T-D-P 50 feet per minute T-D-P Clip (min. length 20″) 22 ga. 2-1/8″ 2 1/8″
Forming Sections: 14
Shaft Diameter: 1.25″
Passline: 38.625″
Forming Speed: 50fpm
