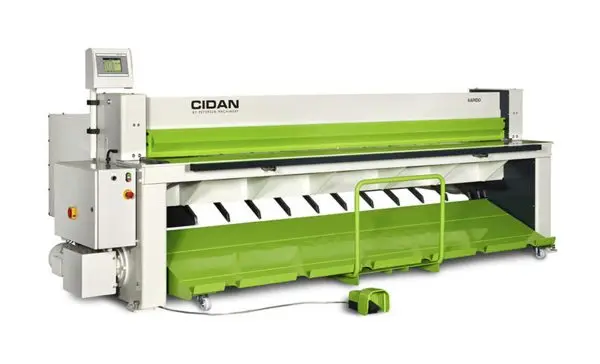

CIDAN RAPIDO Model 32 10' x 13-ga Squaring Shear - IN STOCKPower Squaring Shears (Gauge)
The CIDAN RAPIDO 32 guillotine shear is an electrical guillotine shear that works fully independent of oil or hydraulics and emphasizes our philosophy regarding the environment with very little energy and low noise output. The drive system with eccentrics, pulldown rods, and hold down system which can be positioned as close as 1” from the knives allow for easy and expedient trimming of narrow strips. The CIDAN RAPIDO guillotine shear is equipped with the CutLink control system, capable of queueing several programs, automatically shifting the machine from one step to the next. This already well-equipped machine also has a wide range of options including different back gauge and sheet handling systems.
Shear can cut all material qualities – mild steel from 0,4 mm (28 gauge) up to 2,5 mm (13 gauge) without any settings at all and the blade gap stays the same.
Fully mechanical, electrical, no use of oil – not hydraulic.
Drive system with eccentrics and pulldown rod connected to the upper blade beam. A long guide. Material is clamped between the table and the hold down beam.
The beam has a rubber piece to protect the material from getting marks on sensitive material.
Standard squaring arm and table extension (option) for multiple sheets.
Different modes of cutting – single cuts, continuous cuts.
Sheet handling system called return to sender will deliver the cutoff sheet to the front for easy accessibility.
Why not buy this shear from someone that can tell you the differences between all the light gauge shears? We promise to get you the right shear for your application. 800-753-0393, Let us deliver this shear to you at the shown price.
|Max Gauge||13 gauge|
|Length of Blade||126"|
|Control||CNC (CNC Backgauge)|
