Advance Cutting Systems Versagraph

Description

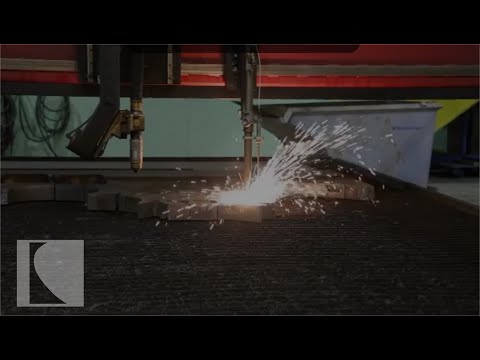

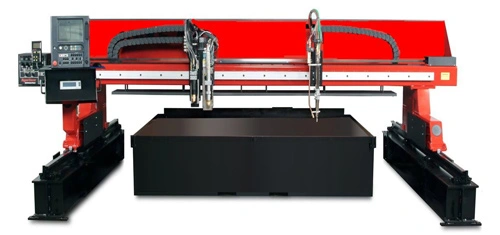

The Advance Cutting Systems Versagraph Extreme is a plasma burn table with a choice to cut with oxy-fuel as well. This cutting machine is able to cut mild steel, stainless steel, aluminum, copper, brass, and more. The Versagraph Extreme is packed with exciting features and benefits ready to increase efficiency, quality and your bottom-line profitability. Best Price Product @ 800-753-0393
Versagraph Extreme Benefits
Plasma & Oxy-fuel cutting process capatible
Standard Equipment

Operator Console: Hard-wired switches for powering machine, selecting oxy-fuel station, operation and E-stop button. Swivels to the left or right for better ergonomic machine operation.
Emergency Stop Button: E-stop button quickly and safely shuts off machine motion and cutting process, including oxy-fuel gases to the torches.
Linear Way and Heat Shields: Wide profile replaceable linear roundway provides for a smooth and accurate cutting motion. Heavy duty heat shields protect machine from heat and sparks.
Linear Ball Slides: Greaseable ball slides provides smooth and accurate motion and are capable of carrying heavy loads.
Limit Switches: Used for over-travel as well as homing of the machine.
Rail Axis Cable Carrier: Can be mounted on the floor or overhead. A sealed design keeps hoses and cables protected from harsh environments.
Large Diameter Drive Pinions: Large diameter pinions offer accurate and smooth machine motion.
Heavy Duty H-Beam and Rail Design: Provides highly accurate symmetry for the basis of precision cutting and smooth motion. Allows expansion of rail length and use of common rail for two or more machines.
Air Tensioning System: For proper pinion-to-rack engagement; extends pinion and rack life.
Slave Carriage Band Clamp: Allows easy and accurate placement and spacing of tools such as, oxy-fuel and plasma torches; allows mirror cutting of parts.
Heavy Duty Slave Carriage Steel Band: Endless loop stainless steel band keeps motion of transverse axis accurate and smoth when using multiple torches.
AC Brushless Drive Motor and Planetary Gearbox: For smooth and accurate motion
Rail Air Blow System and Main Saddle Roller: Removes particles off rail surface when machine is in motion.
Optional CNC Controls

Hypertherm® EDGE Pro
ITT Burny 10LCD
Plasma Systems & Options

Koike Aronson offers three brands of plasma cutting system:Hypertherm, Victor Thermal Dynamics and Burny Kaliburn..
UltraSharp Technology: This system has been calibrated to ensure the highest quality in hole cutting
TrueHole™by Hypertherm®: produces significant hole quality
3D-LT Bevel Unit: rotates in a continuous 360 degree pattern, can perform postive and negative bevel angles of 50 degrees.
Hypertherm ArcGlide Torch
INOVA Precision Arc Voltage
Manual Plasma Bevel Station
Laser Pointer: Allows operator a visual indicator for plate alignment and torch positioning.
Oxy-Fuel Systems & Options

Auto Ignitor: Safely ignites oxy-fuel torches with the convenience of never having to leave operator station
Torch Bevel Head Attachment: the bevel head attachment is used in place of the a Koike cutting tip.
Twin Tip Holder: Coverts a signle oxy-fuel cutting torch into dual cutting torches. Allows strip cutting and a closer distance between small parts.
D7 Cutting Tips: High quality, Faster Cutting, Gas Savings, Durable
Oxy-Fuel Torch Stations
Pneumatic Dot-Peen Stamp Marker Station: Carbide tipped variable speed punch for marking bend lines, layout lines, drill locations and lettering/numbering as small as 1/4″ high
SP-400 Triple Bevel Station: Allows single pass straight line oxy-fuel beveling up to 2″ thick.
Servo Gas Control with Auto Ease On: Allows HI-LO preheat for fast preheating of plate and superior cutting quality. Features auto ease-on pierce contorl for cut oxygen. Allows for precise piercing on thicker plate. Dome loaded regulators provide precise flame adjustment.
Tables Options

Zoned Downdraft Cutting Table
Water Cutting Table
Other Options

Fume Extraction Unit – made by Donaldson ExtraLife™
Safety Light Curtain: will shut-off machine if anything comes withint eh path of the light curtain while machine is in motion.
Optional Operator Platform
CNC Air Conditioning Unit: Provides additional cooling required for machines operating in temps above 120°F (49°C).
