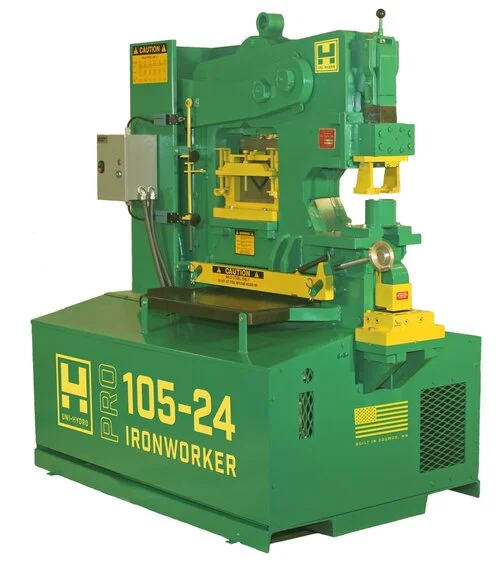

UNI-HYDRO Model Pro105 105 Ton Hydraulic Ironworker

Description

Features Include:
Manual punch aligner- 105 ton open throat punch – 24" bar shear with 4-sided blades – Magnetic starter for safety and reliability – Fixed or adjustable bar shear hold-down – Electric foot control – Eyelet and forklift accomodations – Variable stroke control – 4th station allow notching without retooling – Grease bank for lubricating fittings without removing covers

Accessories
Punch nut wrench for L series or 150 and 500 series punch nut – Bar shear stop for production shearing up to 24" lengths – Deluxe back gauge for production shearing up to 6-foot lengths – Punch table with adjustable jig for high production with accuracy – Punch rack holds 30 sets of punches and dies – Steel bin catcher – Oversize die stand for punching over 2 1/4" round (specify type and thickness of material to be punched) – Offset die stand for punching close to the web on angle iron. (specify size of angle, largest diameter hole to be punched, and – measuring from the inside – how close to the web the hole is located)
If you appreciate well-built machinery, the Uni-Hydro Model 105-24 is the ironworker for you. This machine has been overbuilt on massive scale to handle the toughest fabrication job with ease. Competitor ironworkers are not only dwarfed by the size of “The 105”, most don’t even offer a true integrated 4-station design. They attempt to weld on a notcher and claim a 4th, NOT us!

The PRO Series of Uni-Hydro are machines designed with a Flat Bar Shear, Power Cavity, Punch Station and Notching Station.
FEATURES: 105-ton open throat punch with manual punch aligner
Full 4th Notcher Station - Choice of Square, V Coper or Pipe Notcher
4-Way 24″ low rake flat bar shear blades
Flat bar shear table
Fixed or adjustable bar shear hold down
Magnetic starter for safety & reliability
Electric foot control
Variable electric stroke control
Grease bank for lubricating machine without removing covers
2-1/4″ Stripper
L 150 & 500 Series punch and die adaptor kit that accepts up to 2-1/4″ dia punching
Eyelet & forklift accomodations
PRO SERIES 105 TON IRONWORKER SPECIFICATIONS
Model PRO 105-24
Tonnage 105
Throat Depth 12"
Punch
2-5/8" hole in 1/2" mild steel
1-3/8" hole in 3/4" mild steel
1-5/8" hole in 1" mild steel
Bar Shear
1/4" x 24" , 1/2” x 20”
3/4” x 12”, 1” x 8”
Angle Shear 90°
Slug Type - 6" x 6" x 1/2"
Sever Cut - 4" x 4" x 3/8"
Miter Angle 45°
Slug Type - 4" x 4" x 1/2"
Sever Cut - 4" x 4" x 3/8"
Rod Shear
Round (Max) - 1-1/4"
Square (Max) - 1-1/4”
V Coper Notcher 90°
Notcher Station 3" x 3" x 1/4”
Punch/Power Cavity 4" x 4" x 1/2”
Square Notcher
Notcher Station 3" x 3" x 3/8”
Punch/Power Cavity 3" x 3" x 3/8”
Pipe Notcher (Sch 40 or 80) 1/2", 3/4", 1", 1-1/4", 1-1/2", 1-3/4”, 2" - Larger avail
Brake 6", 9”, 14”, 18”, 24” capacity
Channel Shear 2" & 3" combined or 4", 5”, 6” standard
Strokes Per Min Light Material - 40 Max Capacity - 8
Hydraulics 3,000 psi
Oil Capacity 28 gallons
Motor Standard - 7.5 HP / 220v / 3ph
Optional - 7.5 HP / 1ph
Dimensions (L x W x H) 61.5" x 41" x 69.5"
Bar Shear Work Height - 30-3/4"
Punch Table Top Height - 40-1/2"
Cavity Table Top Height - 41-3/4"
Notcher Station Work Height - 26-3/4”
Weight - 4,640 lbs
