DUCTFORMER TDC/F or TDF/C Air Brake

Description

This CR-TDFC BRAKE is close to being in stock and priced to sell. It allows you to perform 90° (and under 90°) bending operations on mild steel including sections with preformed flanges such as TDC-F & TDF-C style duct. The brake is powered by external pneumatic air with foot pedal activation. Bend lengths over 60" (1500 mm) are formed by one man resulting in significant time savings. 800-753-0393 for your delivered price.

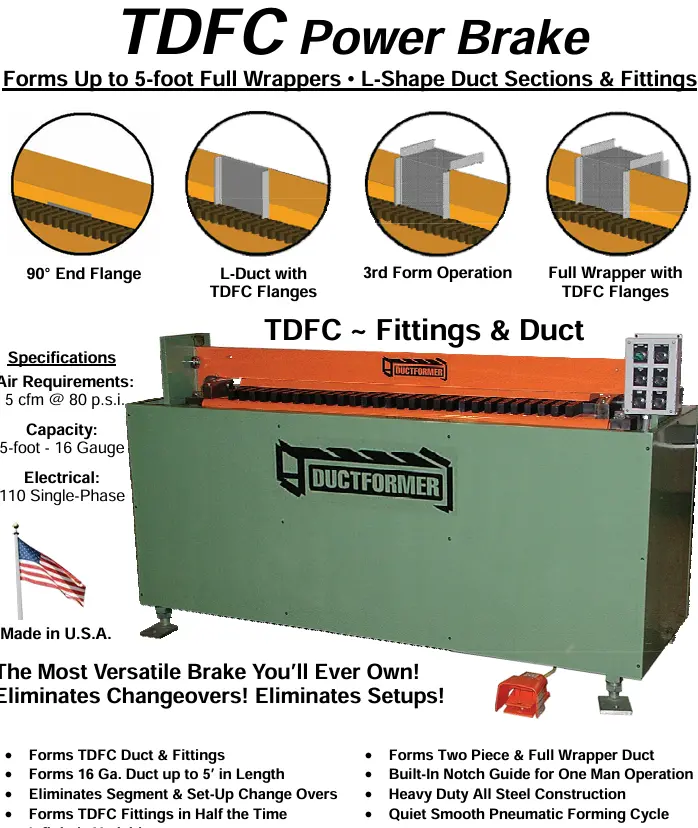

TDFC Power Brake
The TDFC Power Brake is designed specifically for bending the 90° bends on rectangular duct work. It is an extremely efficient tool to use for bending straight duct joints and fittings for Full Wrapper or L-Shape Duct with TDFC style (F-Style & C-Style) flange connectors. One (1) Operator can quickly and easily slide a part into the machine and align the notches in an instant on the alignment blade located on the bending line. Other types of duct such as Slip and Drive or raw edge duct can also be folded or bent to 90°. The machine can also fold any angle less than 90°.
One (1) New Model # CR6016 TDFC Wrap Brake. This system is able to perform 90° (and under 90°) bending operations on mild steel including sections with pre-formed flanges such as TDFC Duct (F & C Style). The system is powered by external pneumatic air with foot pedal activation. The Segmented Tooling allows the operator to form an endless array of sizes with NO set-up or change-over required. Bending lengths up to 60” (1500mm) are performed by one man resulting in significant time savings.
Max part Length ------------------------------...-------- 60 5/8” (1580mm)
Gauge capacity (mild steel)-------------------------16 Ga. (1.2mm)
Cycle time (wrap duct , 3 bends)-----------------20-25 seconds
Electrical---------------------------------------------.-------110 / Single phase
Air Requirement ---------------------------------------- 5CFM, 80PSI (5.5bar)
