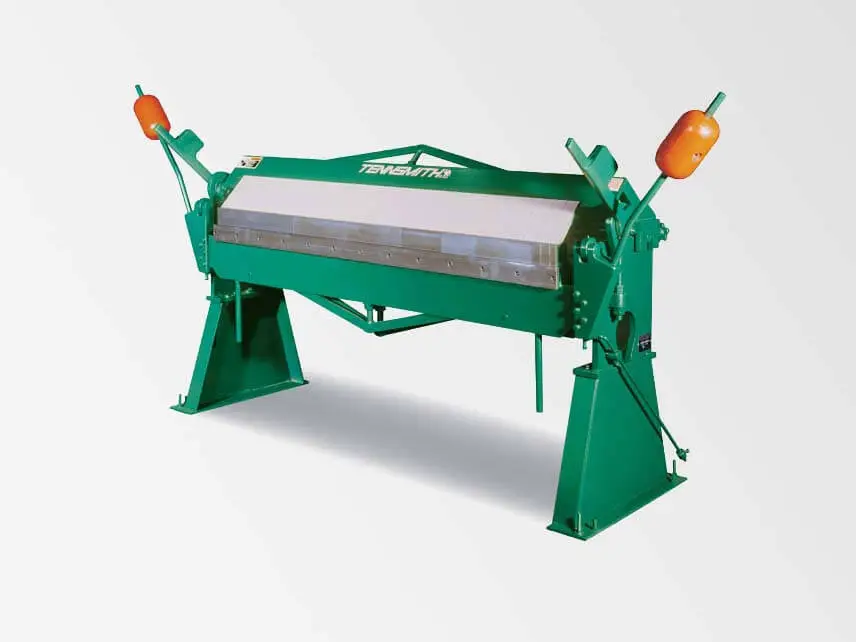

Tennsmith 4FT and 6FT Manual Floor Model Heavy Duty Down Flange-TDF/TDC Finger Brakes (Box and Pan) with 12GA and 16GA mild steel capacities.
Models: HBT48-12 and HBT72-16
Tennsmith Manual Floor Model Heavy Duty Down Flange-TDF/TDC Finger Brakes (Box and Pan) Specifications
Manual Floor Model Heavy Duty Down Flange-TDF/TDC Finger Brakes
HBT48-12 HBT72-16
Capacity, mild steel 12GA 16GA
Capacity, with bending support angle removed 16GA 20GA
Bending length 48 in (4FT) 72 in (6FT)
Maximum lift of beam 1-1/2 in 1-1/2 in
Front to rear beam adjustment 1/2 in 1/2 in
Maximum depth of box 4 in 4 in
Minimum reverse bend 5/8 in 5/8 in
Minimum flange in capacity material 1 in 1 in
Top segment tooling widths 2, 3 and 4 in. 2, 3 and 4 in.
Lower segment tooling widths 1, 1-1/2, 4, 6, 8, 12, 20 in. 1, 1-1/2, 4, 6, 8, 12, 20 in.
Bending beam tooling segments 1, 1-1/2, 6, 8, 12, 20 in. 1, 1-1/2, 4, 6, 8, 12, 20 in.
Maximum transverse bend (through tooling centers) 2 in 2 in
Maximum transverse bend (at either end of machine) 3 in 3 in
Dimensions, counterweights in place, LxWxH 72 x 36 x 53 in. 89 1/2 x 36 x 53 in.
Shipping weight 1750 lbs 2200 lbs
Ample clamping and nose bar adjustments allow for the bend radius necessary for your application. Welded steel plate construction and heavy truss rods and braces provide strength and rigidity.
This brake features a removable apron insert for 1/4-inch bends in lighter material. The upper leaf adjustment screws feature thrust bearings to prevent upper beam creep. Ductile steel clamp handles, heavy counterweights and an apron stop rod add to the brake’s ease of operation.
The removable fingers are case hardened for long service. Tennsmith’s box and pan hand brake is a productive addition to any shop doing prototype or design work, fabrication or short run production in heavier materials.
THESE ARE PRICE PROTECTED PRODUCTS. WE SELL THESE AT THE LOWEST ALLOWED DELIVERED PRICE. Call us 800-753-0393
HBU48-12 HBU72-16
Capacity, Mild Steel: 12 Gauge 16 Gauge
2.70 mm 1.60 mm
Capacity, Stainless Steel: 16 Gauge 20 Gauge
1.60 mm 1.00 mm
Bending Length: 48-1/4 in. 72 in.
1225 mm 1829 mm
Maximum Lift Of Beam: 1-1/2 in. 1-1/2 in.
38.1 mm 38.1 mm
Front To Rear Beam Adjustment: 1 in. 1 in.
25 mm 25 mm
Maximum Depth Of Box: 4 in. 4 in.
101.6 mm 101.6 mm
Minimum Reverse Bend: 1/4 in. 1/4 in.
6 mm 6 mm
Minimum Flange In Capacity Material: 1 in. 1 in.
25 mm 25 mm
Finger Widths: 2, 3, 4 in. 2, 3, 4 in.
51, 76, 101mm 51, 76, 101mm
Dimensions, counterweights in place (L x W x H):72 x 36 x 53 in. 96 x 36 x 53 in.
1829 x 915 x 1346 mm 2438 x 915 x 1346 mm
PLEASE CALL US FOR A TRUE PRICE ON OUR TDF-TDC-TDX BRAKES. WE DO GET THESE IN USED AT TIMES AND PLUS WE OFFER AIR AND HYDRAULIC TDF BRAKE ALSO. 800-753-0393
