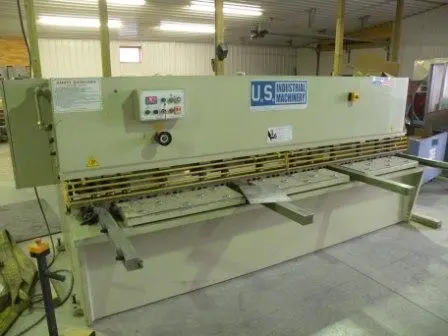

US Industrial Model 1025 Hydraulic 10′ x 1/4″ Power Shear

Description

We have new or used in this model Shear and ready to go to work. Call for your Delivered PRICE! 800-753-0393
ONE (1) NEW U.S. INDUSTRIAL 10’ X 1/4” HYDRAULIC SHEAR
Model Number: US1025
STANDARD EQUIPMENT: (All below comes with the machine)
Squaring Arm - Bolt on table segments…qty of 3
High Carbon, High Chrome Shear Blades
Hold-downs faced w/anti-mar neoprene
Quantity of 24, 1” ball transfers
Swing Beam Design
Manual Quick Change Blade gap adj.
Pressure Sensing Hold downs
Squaring Arm, 43.5” from blade to end
Electric stroke adjustment
Stroke Counter Operator control console
Front-controlled power back gauge Shadow lighting
Blade Guard, Micro switch protected Low noise gear pump
Hydraulic, Electrical Overload Protection 3 support arms
Automatic Swing-up on back gauge
SPECIFICATIONS:
Sheet Size 126”
Shearing Capacity 1/4” Mild Steel @ 65000 PSI
Shear Angle 1 degree 30’
No Load Strokes 14
Throat Depth 5.5”
Adjustment Range Of Back Gauge 0.75”-36”
Hydraulic Oil Capacity 71 Gal.
Main Motor 15 HP
Net Weight 15,550 lbs
Dimensions (L x W x H) 157” x 63” x 63”

WE WILL NOT BE UNDER PRICED ON THIS UNIT. CALL US TO HAVE THIS MACHINE DELIVERED! 800-753-0393
