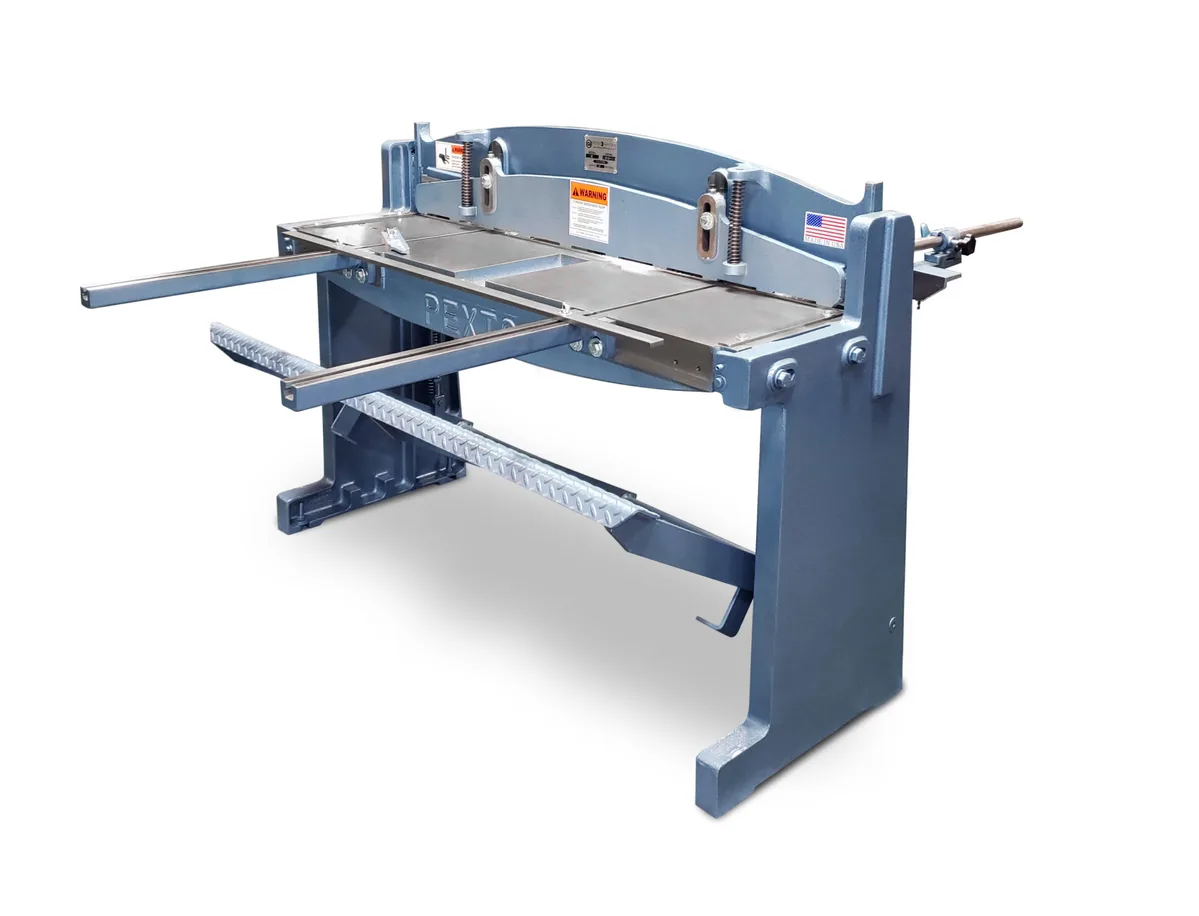

Roper Whitney Model 152 52″ x 16 gauge Manual Foot Shear

Description

PEXTO foot squaring shears are the industry’s most accurate. They are easy to operate and offer precise shearing, long life and dependability. All are provided with precise gauging and hold-downs for cutting accuracy. Maximum rated capacity is 16 gauge mild steel. No. 152 shears offer triple-action shearing which includes relief on both edges of both the fixed and moving blades. It eliminates blade-to-blade friction, provides “bite” to eliminate sheet movement under shearing stress and produces double penetration in the cutting action. This contributes to easier operation. The No. 152 will handle a 52″ sheet. *Lead times may be longer for this item.
Product Specifications
WEIGHT: 1000 lbs
DIMENSIONS: 60 × 34 × 42 in
MAXIMUM SHEARING CAPACITY, MILD STEEL: 16 gauge / 1,6 mm
MAXIMUM SHEARING CAPACITY, STAINLESS STEEL: 20 gauge / 1,0 mm
MAXIMUM CUTTING LENGTH: 52 inches / 1320 mm
BACK GAUGE RANGE: 30 inches / 762 mm
FRONT GAUGE RANGE: 37 inches / 940 mm
FLOOR SPACE, GAUGES IN POSITION: 60 x 76 x 42 in. / 1524 x 1930 x 1070 mm

We will generally have both NEW & USED 152's available. Call us or email us.
