This TDF brake is ONLY available new at this time. Check back often, however we do have these brake NEW in stock for roughly $6900 delivered to your door. 800-753-0393 for lowest allowed price on this brake.

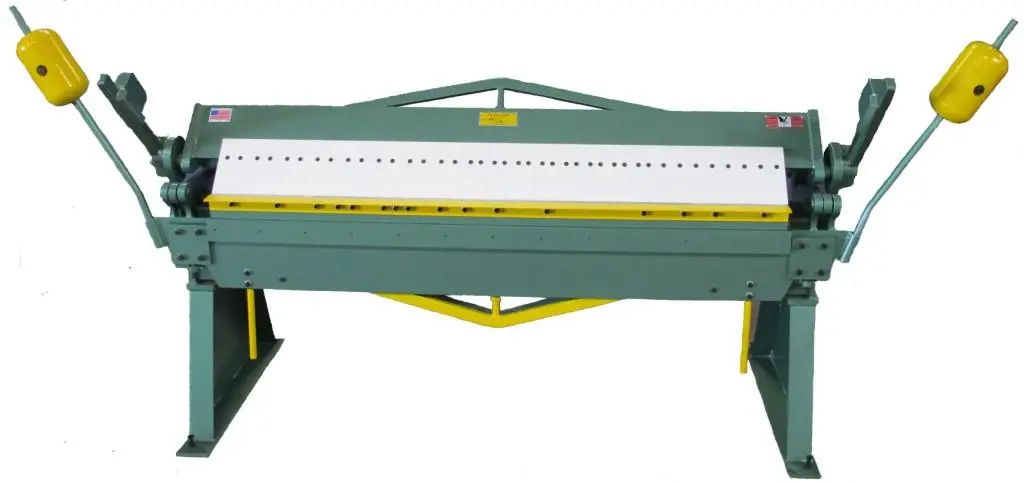

An incredibly universal hand brake. Featuring box & pan fingers up top and segmented, relocatable bend apron tooling below. Perfect for complex parts to include flange down bends, transverse duct forming & much more. With strategically positioned counter weights this brake makes for easy and smooth manual bending.
Specifications:
Capacity with lower tooling flanges: 72” x 16 gauge (1.6mm)
Capacity without lower tooling flanges, 72” x 20 gauge (1.0mm)
Lift of beam: 1.5″” (38.1mm)
Front to back ram adjustment: 1/2″ (13mm)
A minimum reverse bend of 5/8″ (16mm)
Min flange width: 1″ (25mm)
Finger widths: 1″, 3″, and 4″ (50.8, 76.2, and 101.6mm)
Lower segment tooling widths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm)
Bending beam tooling (segmented) lengths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm)
Maximum transverse bend in center of machine: 2″ (50.8mm)
Maximum transverse bend at end of machine: 3″ (76.2)
Footprint with counter weights: 95x38x54in (2413x965x1346x1372mm)
A shipping weight of 1850 lbs. (839kg)
