LOCKFORMER TRIPLEX CLEATFORMER
Have one to sell?
ConditionUsed
1 available
$36,000.00 USD
$19,950.00 USD

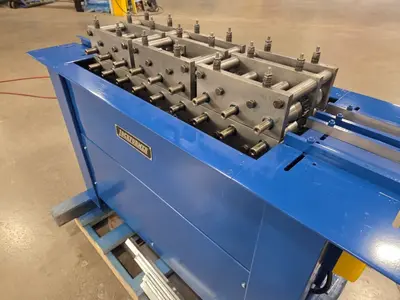

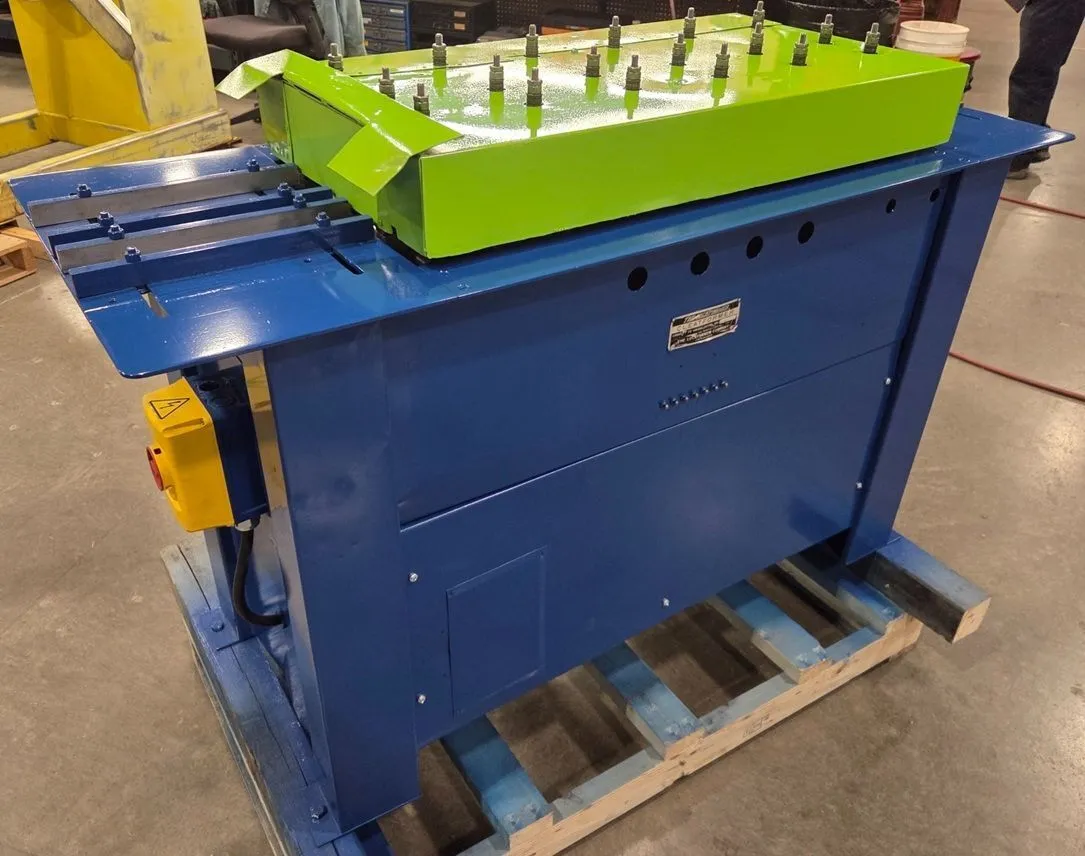

This is a fully rebuilt Lockformer Triplex Rollformer that has been torn down completely and rebuilt. Which means all new bearings, washers, etc. etc. Full 6-month warranty wired 230-Volt/ 3-Phase. Your choice of outboard rolls.

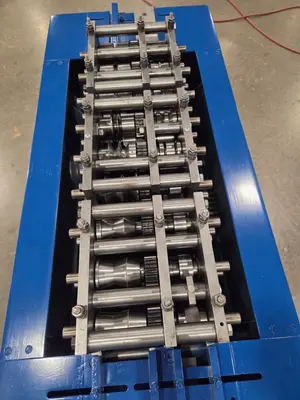

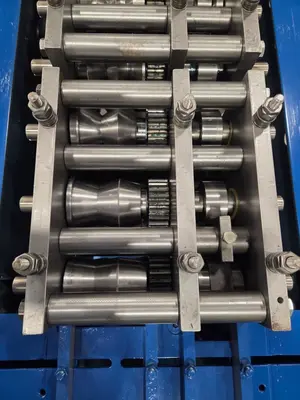

These cleatformers are designed for superhigh productivity in the fabrication of inboard drive and "s" cleats. The top plate and roll assembly are split into three zones with each having special design details like knurled rolls and angled guides to keep material moving through the machine in a straight line. These zones also can be adjusted by the operator to meet the requirements of a wide variety of gauges.
With nine (9) forming stations, the Triplex Cleat Former can form multiple gauge sheet metal into “S” and drive cleats on the inboard forming positions and up to twelve (12 different) auxiliary roll set profiles on the outboard forming positions at speeds averaging 100 fpm. Standard is the 5 HP motor featuring high precision needle-type bearings, heavy 3/4″ chassis plate, case-hardened and ground roll shafts. This machine was 100% Made in the USA, and all Lockformer OEM parts were used to rebuild it. Buy with confidence! The slitter attachment is available for this machine at an additional cost.
This is a fully rebuilt Lockformer Triplex Rollformer that has been torn down completely and rebuilt. Which means all new bearings, washers, etc. etc. Full 6-month warranty wired 230-Volt/ 3-Phase. Your choice of outboard rolls.
These cleatformers are designed for superhigh productivity in the fabrication of inboard drive and "s" cleats. The top plate and roll assembly are split into three zones with each having special design details like knurled rolls and angled guides to keep material moving through the machine in a straight line. These zones also can be adjusted by the operator to meet the requirements of a wide variety of gauges.
With nine (9) forming stations, the Triplex Cleat Former can form multiple gauge sheet metal into “S” and drive cleats on the inboard forming positions and up to twelve (12 different) auxiliary roll set profiles on the outboard forming positions at speeds averaging 100 fpm. Standard is the 5 HP motor featuring high precision needle-type bearings, heavy 3/4″ chassis plate, case-hardened and ground roll shafts. This machine was 100% Made in the USA, and all Lockformer OEM parts were used to rebuild it. Buy with confidence! The slitter attachment is available for this machine at an additional cost.
Imperial
| Number of Stands | 9 |
| Power | 5 hp |
